Ablative/Copolymer anti-fouling bottom paint, 2 coats, primed
- Awlgrip engine-room, lazarette, forward bilge and anchor locker for enhanced visibility and easier maintenance
- Blister resistant modified epoxy resin in entire hull skin
- Custom blended modified vinylester and used in structural laminates, topsides, bridges, and hardtops
- Dockside and overboard pump outs for holding tank
- Stainless Steel side thru hulls
- Satin interior finish throughout
- High performance isophthalic gelcoat npg superior gloss, flexibility and  outstanding weathering characteristics
- Hull  and stringers vacuum infused using Airex foam cores with E-glass hybrid fiberglass laminates, forming a single monolithic structure
- Hull interior isophthalic gelcoat topcoat with
- a durable high gloss polyurethane coating
- Aluminum fuel tank and molded freshwater and holding tanks
- Nonskid for traction and durability
- Vacuum infused composite bulkheads

- Air Conditioning - direct expansion zoned with reverse cycle heat
- Bilge pumps with additional clean out pumps on centerline linked into monitoring system and connected to switches for automatic and manual operation
- DC power-assist hydraulic steering
- Pump room ventilation
- Fire suppression system
- Fuel lines, flexible, steel reinforced USCG approved aircraft type.
- Internal sea strainers for generator
- Muffler - generator/lift muffler with fuel water separator for cleaner, quieter operations
- PEX plumbing, freshwater system with manifold system shut off
- Pressurized freshwater system, 12V D/C pump with on deck freshwater fill and cockpit dockside supply inlet with pressure reducing valve
- Fuel water separators for main engines and generator are manufacturer supplied
- Seacocks are Marelon ball-type sea valves with exterior strainers for all thru-hulls below the water line
- Humphree Lightning trim tabs, with individual controls
- Water heater, quick recovery, electric

- 24V DC ship's service throughout
- 24V power supply with breakers on flybridge tor future electronics
- Anchor light/navigation lights
- Batteries include independent 24V banks for each engine, a dedicated house bank, and a dedicated electronics bank, all mounted in USCG approved storage boxes
- Battery chargers, (2) with thermal cutoff and switching system for complete integration
- Battery distribution panel with battery cutoff and charging system breakers
- Battery parallel system for main engines and generator start
- Bonded electrical system with ground plate
- Color-coded, labeled wiring system with corresponding drawings
- LED interior lighting throughout
- Emergency DC crossover
- Engineroom lights, DC with switch
- Generator, Diesel - Onan 29 kW E- QD (electronic quiet diesel) Series, user-friendly with electronic governing allowing voltage and electronic frequency control
- Shore power cable with 3 wire grounded cord, 50 amp/220V inlet with 50’ cord
- Instrument panel lights for main electric panel
- Master electrical control panel located in cabin with 24V/120V circuit breakers, individual switching for shore or generator supply and gauges for electrical supply, voltmeter, ampmeter and frequency
- Receptacles, 120V duplex with GFI throughout

- Controls top mounted electronic controls with station select on keypad
- Engineroom access thru hatch in bridge deck
- Fire system control with automatic and manual discharge and override system at console
- Captains and companion teak ladder backs with removable cushions, mounted on pedestals
- Instrumentation based on chosen engine package
- Lighted compass flush mount on centerline
- Manual engine shutdown switches in console
- Nonskid deck for traction and durability
- Offshore Systems safety monitoring system with audible and visible alarms: fire, engineroom temperature, high bilge water, high exhaust temperature, high coolant temperature, low oil pressure, and generator as well as confirming correct system operation
- Port and starboard side bench seating vinyl cushions and storage underneath
- Power assist steering
- Black acrylic for flush mounting electronics in console
- Trim tab control switch mounted at console

- Engine Room access through Mezzanine
- Dockside water connection with pressure reducing valve under forward gunwale
- Freshwater wash down with hose bib located under forward gunwale
- Gaskets for all lids, doors and access doors
- Indirect rope lighting under coaming
- Backing plate in deck for rocket launcher or table
- Lazarette hatch with access to steering, trim tabs, drains and pumps
- Observation mezzanine freezer box & bait prep
- Stainless steel cleats and hawse pipes
- Rod holders, (6) aft, (4) forward flush mounted
- Seawater wash down under gunwale
- Self bailing cockpit with large cockpit scuppers
- Stainless steel gas pistons, all hatches and lids
- Walk-through transom door with lift gate

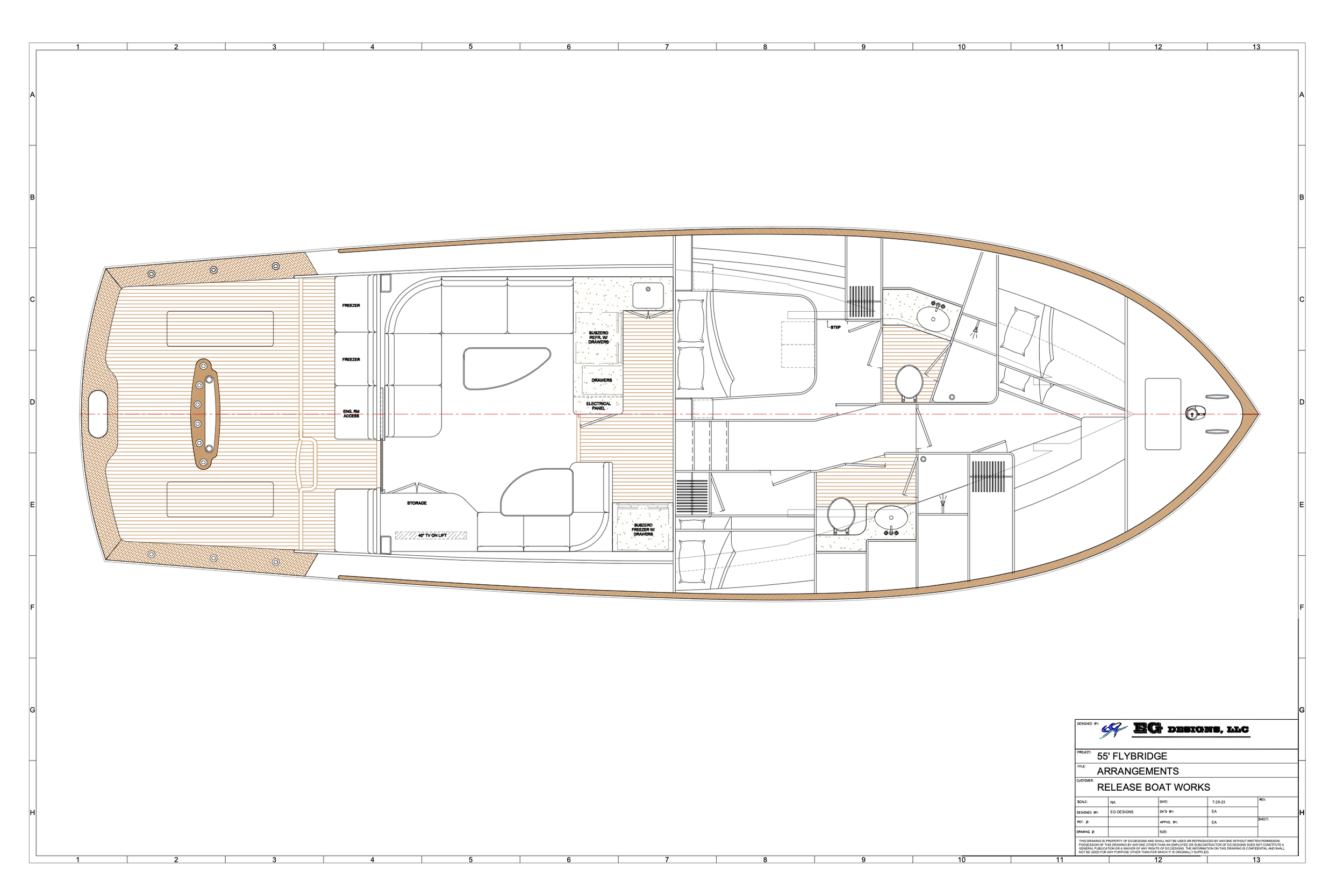

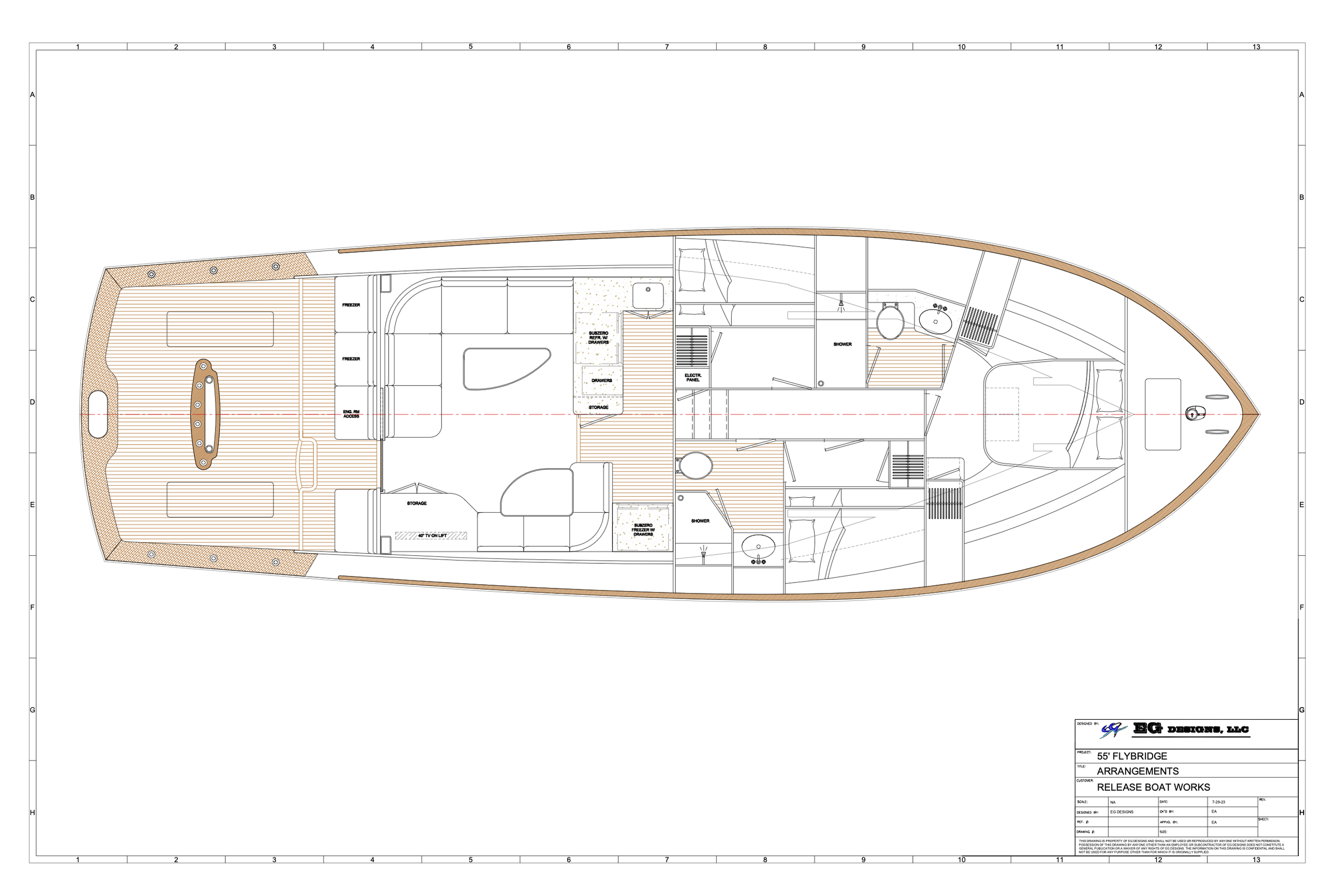

Layouts are fully custom and designed in house. Custom layouts may incur additional costs based on complexity.

- Nonskid deck for traction and durability
- Port and starboard side bench seating vinyl cushions and storage underneath
- Power assist steering
- Forward cherry cabinetry
- Electrical switch panel access

- Air conditioning with reverse cycle heat
- Flooring, teak & holly
- Headliner, painted finish
- Over / under bunks with storage underneath
- Main electrical service panel, AC/DC
- Cherry cabinetry with drawers
- Countertop, high gloss bone color Corian
- Lights, overhead LED lighting
- Microwave/convection oven in galley cabinet
- Refrigerator and freezer, large capacity, deep-drawer under- counter
- Sink, recessed w/ S.S. faucet

- Countertop, one-piece molded bone Corian with rounded edges and with sink with satin nickel faucet
- Electric heads plumbed with y-valve for overboard discharge or direct to holding tank
- Exhaust fan with vent
- Flooring, nonskid
- Bath towel storage
- Lower vanity with fiberglass door
- Lights, overhead LED lights
- Shower, fiberglass with satin chrome shower fixtures and with drain to automatic sump pump in bilge
- Towel bar and ring - chrome

- Anchor constructed with a high-tensile, corrosion resistant aluminum magnesium alloy
- Anchor locker with access from foredeck
- Anchor rode
- Awlgrip bilge areas with access hatches, snow white and lighted using magnetic switches for easier maintenance and cleaning
- Awlgrip lazarette, engineroom, anchor locker and forward bilges
- Fire extinguishers (2)
- Mooring lines, braided nylon (6)
- Stainless steel bow, spring and stern cleats thru-bolted to aluminum backing plates
- Water delivery kit with tool set (D)
